Alarm and Sprinklers

Fire Alarm

Specifications»

• Sophisticated design
• Fail-proof performance
• Easy to install
• Wireless receipt: 315 M (433 M optional)
• Output of power supply: DC 12V 500 mA
• Power supply for alarming: DC 12V 500 mA
• Max output power capacity: DC 12V 1000 mA

Fire Alarm

Product Description»

• battery: 6F22 9V
• Working temperature: -5deg- 65deg
• system power supply voltage: +12VDC
• static current: 0mA
• alarm current: 100mA
• alarm sonority: ≥100db
• alarm time:30 seconds
• product size:31.4×19.7 x9.6cm

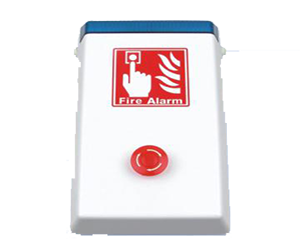

Wireless Alarm

Features»

• Primary power supply: 230V AC 50Hz
• Secondary power Supply: 6V, 1.3Ah SMF Battery
• Battery charging voltage: 10 +/-1V
• Battery charging current: 120mA(max)
• Nominal Current: 60mA
• Alarm current: 120mA
• Operating Temperature: -10ºC to + 60ºC(Non-condensing or icing)
• Storage Temperature -30ºC to + 70ºC(Non-condensing or icing)
• Compatibility: ALAW2XV1 Protocol System
• Dimensions: Height -188mm Width -238mm Depth -58mm
• Weight: 1075g
• Wireless & wired system integration
• Built-in battery charger
• Two level password protection
• Easy to read 80 character LCD display
• High precision protocol
• Extensive Networking capability
• Digital wireless communication
• Connect up to 999 wireless devices
• Easy to install, sleek, low profile elegant design

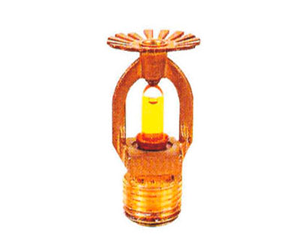

Fire Sprinkler Detection System

Product Description»

• rated working pressure: 12 bars(1.2Mpa)
• airproof test pressure: 24bars(2.4Mpa)
• strength test pressure: 30bars(3Mpa)
• thread: 1/2″, 3/4″
• large coverage glass bulb sprinkler
• 15/20mm diameter model

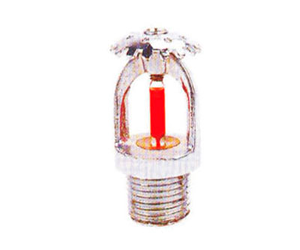

Fire Sprinkler Detection System

Product Description»

• rated working pressure: 12 bars(1.2Mpa)
• airproof test pressure: 24bars(2.4Mpa)
• strength test pressure: 30bars(3Mpa)
• thread: 1/2″, 3/4″
• large coverage glass bulb sprinkler
• 15/20mm diameter model

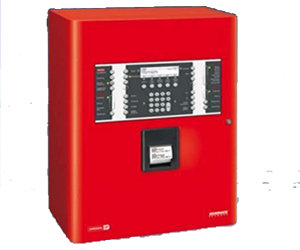

Fire Alarm Control Panel

• Input voltage: 240VAC (50Hz/60Hz) +/-10%
• Battery: 24VDC
• Charging voltage protection: 1.6Ah glass fuse
• Sounder output: 24V nominal EOL 10K resistor
• Main supply protection: glass fuse
• Sounder protection: 2 x 500mA glass fus
• Reverse battery protection: charger glass fuse
• Zone EOL: 5.6K resistor
• Zoned visual red alarm and yellow trouble indicators
• Continuous signal during alarm
• Built-in battery charger
• Low / no power and battery detection
• Automatic loading and testing of battery
• Battery lead reversal protection
• Evacuate (alarm resound)
• LED test
