Fire Control Panel

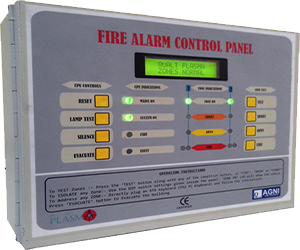

2Zone Control Panel

Item Code: PLASMA»

• Zone Addressable Fire Alarm Panel
• User Editable 16 character Zone text
• Zone editing using PS2 Keyboard
• Comprehensively designed & Very compact size
• Networking up to 16 Panels
• Evacuate option
• 16 X 2 LCD for visual indication
• Zone wise Fire, Open and Short Indications
• Extended Test/Isolation facility
• Intelligent Hardware Monitoring with Low batt and fuse blown sensing
• Supports all conventional panels
• Supports up to 20 Nos. conventional detector in each zone
• Auto dialer connectivity
• Inbuilt battery space & battery charger
• Operates on 230 V, 50 Hz AC supply
• 24V, 1.3 AH stand-by with 12Hr operation
• Zone test & Isolation feature
• Light weight, 2.4 Kg

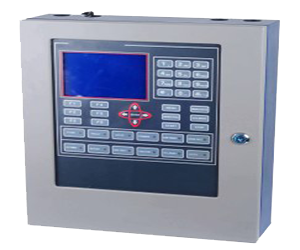

Fire Alarm Control Panel(Dsm-4008)

Product Description»

• The OZH4800E control panel is an analog addressables or modules
• Primary Power Supply: 120V or 220VAC 50/60Hz
• Standby Batteries: DC24V 4AH sealed rechargeable batteries
• Power Supply Output: 24VDC @ 5.0 Amps (4 Amps available for system power)
• Display: 15 lines x 40 characters LCD (600 characters total)
• loops: 2, 4, 6 or 8 (class A, “style 6 or 7” or class B, “style 4”)
• Devices per loop: 192 sensors & modules
• Addresses per panel: 1536 max.
• Operation Temperature: 10°C~+50°C Related Humidity: ≤95% (40±2°C)
• Dimensions (D * W * H): 110×335×435mm Weight: 16Kg

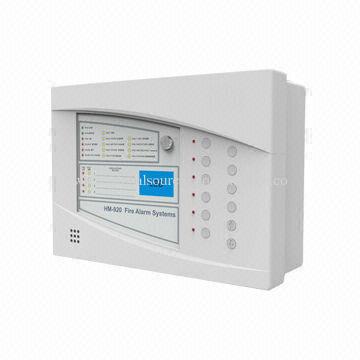

Fire Control Panel For Fire Fighting System

Features»

• Microprocessor technology
• Show real time, user can adjust the time
• Control panel and detector use 2 wire connection
• Can record and enquire 999pcs alarm information
• Separate display, setup, alarm, failure, test, disable operation for each zone and each zone’s status could be recorded
• Panel can comprehensively check external connected equipments
• Easy key operation
• Auto check function, checks if each zone and system display module work properly
• Panel has alarm delay function, user chooses delay time
• Dimensions: 300 x 210 x 100mm
• Executive criteria: EN54-2, EN54-4
• Operating voltages: AC 220V±15%/50Hz
• Alarm with: 16 zones
• Working environment range: -10-60 °c
• Alarm output: Sound & flash alarm; relay output
• Installaion: Wall mounted

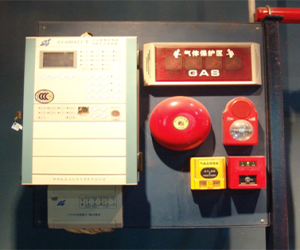

Conventional Fire Alarm Control Panel»

• Model no:Dsm-3004
• 2 or 4 wire
• Advanced detection and discrimination algorithms
• Easy installation and maintenance
• Polished low-profile housing design
• Durable sensor head, no need for replacement
• SMD circuit board design: Satisfactory quality and reliability guaranteed
• Integrated heat detector model
• N/C (normal / close) and N/O (normal / open) relay output ways for option
• AR (auto reset) function for security systems (optional for 4-wire model.

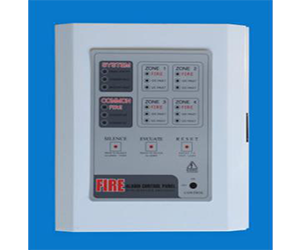

Conventional Fire Control Panel

• Operating Voltage:AC 184V~245V 50Hz
• Standby Batteries:24V2.3AH
• Output Voltage:20V~28VDC Static Loading Current:2.5mA
• Sounder Output Voltage:20V~28VDC
• End Of Line resistor:4.7KΩ Fire Alarming Resistance:150Ω~105KΩ
• Operating Temperature -10°C to 40°C @ 95% relative humidity
• Dimension:380×320×95

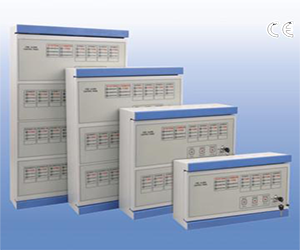

Fire Alarm Control Panel

• Input voltage: 240VAC (50Hz/60Hz) +/-10%
• Battery: 24VDC
• Charging voltage protection: 1.6Ah glass fuse
• Sounder output: 24V nominal EOL 10K resistor
• Main supply protection: glass fuse
• Sounder protection: 2 x 500mA glass fus
• Reverse battery protection: charger glass fuse
• Zone EOL: 5.6K resistor
• Zoned visual red alarm and yellow trouble indicators
• Continuous signal during alarm
• Built-in battery charger
• Low / no power and battery detection
• Automatic loading and testing of battery
• Battery lead reversal protection
• Evacuate (alarm resound)
• LED test
